Hinges

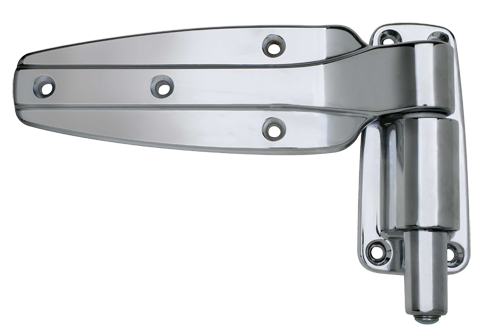

Kason's 1248 Spring Assisted Hinge

Kason's 1248 Spring Assisted Hinge is engineered for strength, durability, and smooth operation on heavy-duty walk-in doors.

    • Spring mechanism adds extra closing force to overcome air resistance on heavy walk-in doors.

    • High-lift cam system provides superior performance compared to similar spring hinges.

    • Cam-rise action reduces gasket wear, even on irregular floors.

    • Built-in dwell keeps the door securely open beyond 130°.

    • Reversible design allows for simple installation on right- or left-opening doors.

    • Material: High-pressure die-cast zinc with self-lubricating nylon cam.

    • Finish: Powder coat available (see catalog for options).

    • Mounting: Drilled and countersunk for 1/4” (6.0mm) flat head screws.

  • $189.50/each

1245 Reversible Cam-Rise Hinge

    • Effortless door operation with smooth, trouble-free performance

    • Strong self-lubricating nylon cam reduces wear and ensures long service life

    • Cam-rise action helps reduce gasket wear—even on irregular floors

    • Holds doors open up to 130° for easy loading and unloading

    • Reversible design: works for both right- and left-opening doors without disassembly

    • Reliable self-closing action to maintain cold room efficiency

    • Material: High-pressure die-cast zinc with self-lubricating nylon cam

    • Finish: Powder-coated finishes available for harsh environments

    • Mounting: Drilled and countersunk for 1/4” (6mm) flat head screws

  • Built tough to withstand demanding cold storage environments, this hinge ensures long-lasting reliability, smooth operation, and maximum door performance—all while reducing maintenance needs.

  • $185.50 / ea

Upgrade your cold storage doors with the industry-standard self-closing cam-rise hinge—built for performance, durability, and ease of use.

1074 Steel Strap Hinge

Kason's 1074 Steel Strap Hinges are designed for heavy-duty performance in coolers, freezers, and cold storage doors. Engineered for smooth action and long-lasting durability, they ensure consistent operation in demanding environments.

    • Heavy-duty construction with cast iron flange, steel strap, nylon bearing, and steel pin

    • Smooth hinge operation ideal for coolers, freezers, and cold storage doors

    • Standard right-hand hinge, easily reversible for left-hand applications

    • Non-rising design for stable, long-term performance

    • Kasonized zinc-plated finish for added corrosion resistance

    • Strap Length: 13-5/8” (346.1 mm)

    • Mounting: Strap drilled for 1/4” (6.0 mm) screws; flange drilled for 5/16” (8.0 mm).

    • Offsets: many available call Sangha at 778-574-4500.

  • $205.50/ each

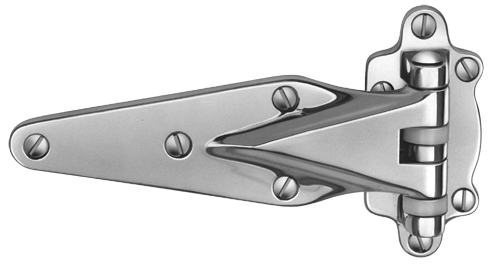

1055 Forged Brass Hinge

    • Ultimate Corrosion Resistance – Forged from high-strength brass for long-lasting performance.

    • Rugged Construction – Designed for dependable wear under the toughest conditions.

    • Smooth & Reliable Operation – Engineered for easy door movement, even with heavy loads.

    • Heavy-Duty Capacity – Built to carry the heaviest doors without compromise.

    • Versatile Options – Available as left or right hinge, non-rising design.

    • Material: Forged brass with stainless steel pin & nylon bearing washers

    • Finish: Polished chrome

    • Mounting: Pre-drilled & countersunk for 1/4” (6.0 mm).

    • Offsets: many options please contact

      Sangha at 778-574-4500.

  • $710 / each - preferred contractors may get a better price call 778-574-4500

.Kason's 1055 Forged Brass Hinge is built to deliver unmatched strength, durability, and corrosion resistance — the perfect choice for demanding cold storage and heavy-duty door applications.

1076 Extra Heavy Duty Steel Strap Hinge

Kason's 1076 Extra Heavy Duty Steel Strap Hinge is built tough for demanding environments. Designed for coolers, freezers, and cold storage doors, this hinge ensures smooth, long-lasting performance.

    • Heavy-duty and durable construction

    • Smooth operation for cold storage applications

    • Right-hand hinge standard, easily reversible for left-hand use

    • Non-rising hinge for dependable alignment

    • Material: Cast iron flange, steel strap, nylon bearing, steel pin

    • Finish: Kasonized (zinc plated) for corrosion resistance

    • Mounting: Strap and flange drilled for 3/8” .

    • Strap Length: 26” (660.4mm)

    • Offset: Many available call Sangha at 778-574-4500.

  • $429.50 / each - preferred contractors please call for special pricing.

1075 Heavy Duty Hinge

    • Heavy duty and long-lasting construction

    • Smooth, reliable operation for demanding environments

    • Standard right-hand hinge, easily reversible for left-hand use

    • Non-rising design for consistent performance

      • Material: Cast iron flange, steel strap, nylon bearing, steel pin

      • Finish: Kasonized (zinc plated)

      • Strap Length: 21” (533.4mm)

      • Offsets : many available call Sangha at 778-574-4500.

  • $297.50/ each

Kason's 1075 Heavy Duty Hinge is engineered for performance and durability, designed specifically for coolers, freezers, and cold storage doors.

Heavy Duty Edgemount Cam Rise Hinge – Model 1398

    • Built to Last: Constructed from high-pressure die-cast zinc with a nylon cam and follower for reliable, long-term performance.

    • Smooth & Safe Operation: The built-in cam gently raises the door as it opens, reducing friction and gasket wear. Door remains secure in open position beyond 150°.

    • Adjustable & Versatile: Slotted mounting holes allow for gasket adjustment. Furnished right-hand, but easily reversible.

    • Easy Installation: Mounting holes drilled for 3/8” (9.5 mm).

    • This hinge has been commonly used on Sangha and Zero-Loc overlapping insulated doors.

  • $281 each

Kason's 1398 Heavy Duty Edgemount Cam Rise Hinge is engineered for maximum durability and smooth operation on full overlap doors.

Perfect for cold storage, heavy-duty industrial doors, and high-traffic applications.

Handles

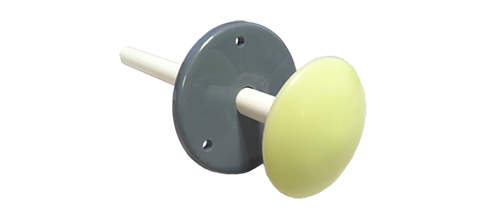

Frost-Free Inside Release Push Handle (0487)

    • Frost-free performance: low-conduction fiberglass rod helps prevent ice build-up.

    • High visibility: Safety-Glow™ knob stands out in dim lighting.

    • ADA-friendly design: compliant when paired with an appropriate latch.

    • Built to last: durable fiberglass rod with rugged plastic flange.

    • Model: 0487

    • Materials: fiberglass rod, plastic flange, Safety-Glow™ plastic knob

    • Temperature Range: −40°F to 150°F (−40°C to 65°C)

    • Mounting: pre-drilled for No. 8 screws

    • Packaging: 24 units per carton

    • Shipping Weight: approx. 17 lb (7.7 kg) per carton

  • $43.60 / each

0481 Safety Glow Inside Release Handle

Reliable. Compliant. Built for Safety.

Kason's Safety Glow Inside Release Handle is designed to provide peace of mind in any cold storage or walk-in application. With a glow-in-the-dark knob, this handle ensures visibility and safety even in complete darkness.

Trust in safety. Trust in reliability. Trust the 0481 Safety Glow Inside Release Handle.

  • Glow-in-the-dark knob – easy to locate during power outages or low-light conditions

    ADA Compliant (when paired with the appropriate latch)

    Durable Construction – steel rod & flange with Safety-Glow™ plastic knob

    Wide Temperature Range – rated from -40°F to 150°F (-40°C to 65°C)

  • Upgrade to the 0481S Stainless Steel Version, designed for use with the 0056 stainless steel latch, for maximum durability and long-lasting performance.

  • $34.00 / each

Keep your team safe and your door frost-free. Our 0487 Inside Release Push Handle uses a low-conduction fiberglass rod and a Safety-Glow™ knob so it’s easy to see and operate— even in low-light, low-temperature environments.

Perfect for: walk-in coolers & freezers, food plants, cold-storage rooms, and any low-temp door that requires an inside emergency release.

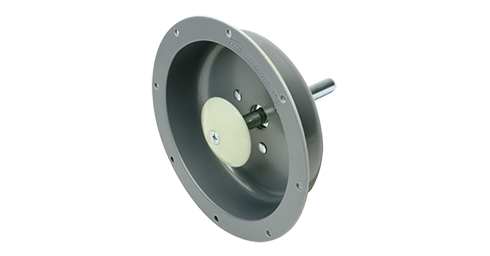

0486 Wide Recessed Inside Release Handle

    • Convenient recessed push handle—nothing to snag.

    • ADA compliant when used with the appropriate latch.

    • Optional frost-resistant fiberglass rod for freezer applications.

    • Safety-Glow™ knob for high visibility in low light.

    • Heavy-duty build for long service life.

    • Material: kasonized steel rod; durable plastic recessed housing; Safety-Glow™ plastic knob.

    • Mounting: holes pre-drilled for No.10 (5.0 mm) screws.

  • $81.50 / each

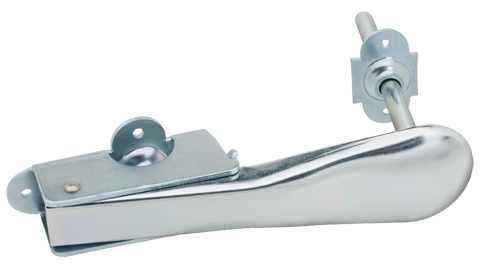

0483 Paddle Inside Release Handle

Safety First: Always use as directed and select carefully for your application.

      • Material: Heavy-duty steel

      • Finish: Kasonized (zinc plated) for corrosion resistance

      • Mounting: Pre-drilled holes for No. 12 (5.5mm) screws – quick and secure installation

      • Weight: Approx. 21 lb (9.5kg) per carton

      • Packaging: 10 handles per carton

    • Designed to work seamlessly with Kason latches

    • Helps prevent entrapment, meeting essential safety standards

    • Built tough with no compromise on reliability

  • $55.00 / each

Hinges
Handles
Latches
Door Closers
Relief Vents
Other Parts

Latches

Kason 0056 Safeguard® Latch

Strength, Safety, and Reliability for Cold Storage Applications

    • Positive Locking Action – Bolt-type tongue ensures secure closure every time.

    • Built to Last – Heavy-duty die-cast zinc body with stainless steel options, engineered to outlast competitors in hard commercial use.

    • Easy Adjustability – Adjustable strike allows for precise fitting and long-term performance.

    • Safety First – Compatible with inside release levers to prevent accidental entrapment in walk-ins.

    • Security Options – Standard padlocking provision, with cylinder-locked or padlocked inside release options.

    • Material: High-pressure die-cast zinc body & strike housing, malleable iron handle, optional stainless steel handle

    • Mounting: Drilled holes for 1/4” .

    • Finish: Powder-coat or stainless steel for extreme conditions

  • $257/ latch body each

    $142/ striker each

0058 Safeguard® Radial Latch

Smooth, Secure, and Reliable Cold Storage Door Latching

Upgrade your cold storage doors with the trusted Safeguard® Radial Latch—engineered for effortless closure, durability, and long-lasting performance.

    • Smooth, easy closure designed for foam doors

    • Self-closing action provides positive tight closure with minimal effort

    • Works effectively with Kason door closers

    • Inside safety release compatible with C-Series releases (sold separately)

    • Economical, adjustable solid head strike

    • Built-in padlocking provision for added security

    • Security Options – Standard padlocking provision, with cylinder-locked or padlocked inside release options

    • Material: High-pressure die-cast zinc with stainless steel black plate

    • Finish: Polished chrome (optional brushed chrome, silver powder coat, or environmental powder coatings)

    • Mounting: Drilled and countersunk for 1/4”.

  • $161/ latch body each

    $74.50/ striker body each

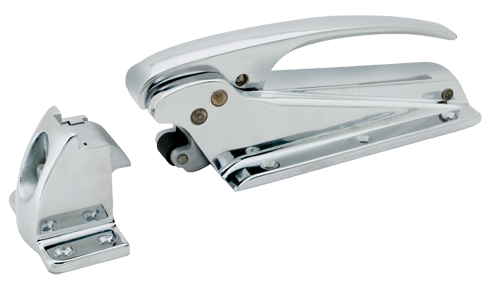

Kason 0055 SAFEGUARD® LATCH

Heavy-Duty Refrigeration Safety Latch – Built for Performance and Protection

Kason 0055 Safeguard® Latch is a pioneer in refrigeration equipment safety. Designed to prevent accidental entrapment in walk-in coolers and freezers, this latch delivers unmatched durability, reliability, and value.

    • Safety First: Complete with inside release lever to prevent accidental entrapment, even if the door is cylinder-locked or padlocked.

    • Heavy-Duty Design: Built for large doors and test chambers requiring a positive latch.

    • Easy Adjustments: Innovative micro-adjustable strike assures precise alignment and smooth operation.

    • Long-Lasting Performance: Rugged mechanical construction engineered for industrial environments.

  • $813.50/ latch body each

    $1242.00 / latch and striker each

Hinges
Handles
Latches
Relief Vents
Door Closers
Other Parts

0778 STAINLESS STEEL SAFEGUARD®
RADIAL TONGUE LATCH AND STRIKE

Upgrade your walk-in doors with the Safeguard® Rolling Radial Latch – designed for smooth, secure, and reliable performance.

    • Perfect for lighter weight foam doors

      • Radial tongue + roller strike for effortless closing and smooth opening

      • Easy release design: pull from outside or push from inside with Kason release handle

      • Effortless closure when paired with Kason door closer

      • Adjustable strike for precise door alignment

      • Standard padlocking provision for added security

    • Mounting: Pre-drilled & countersunk for 1/4” screws

    • Satin Finish, #316 stainless steel body and strike housing

  • $507.50/ latch body each

    $214.50 / striker each

Some other latches are available please contact Sangha at 778-574-4500 if you need further information on the below options or any other custom item required.

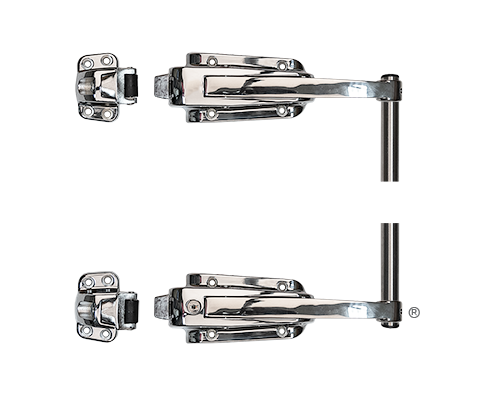

5656 SAFEGUARD TWO-POINT LATCH

    • Two No. 0056 latches with stainless steel connecting rod

    • Lower latch is cylinder locking. Rod is 7/8" (22.2mm) diameter and 37-1/4" (946.2mm) long

    • Bolt-type tongue provides positive locking action

    • Proven, heavy-duty construction outlasts similar latches in hard commercial use

    • Kason adjustable strike assures precise adjustment

    • Padlocking provision standard on all models

    • Accepts Kason inside release lever to prevent accidental entrapment in locked walk-ins. Inside lever releases cylinder-locked or padlocked door

    • Unsurpassed for long life and reliability

    • Inside release sold separately

  • Material: High pressure die-cast zinc body and strike housing, malleable iron handle.

  • For pricing call Sangha at 778-574-4500.

Kason Pressure Relief Vents

When it comes to walk-in freezers, safety and reliability depend on more than just insulated panels and heavy-duty doors. One of the most critical components is the pressure relief vent.

Why They’re Important

  • Every time a freezer door is opened and closed, warm air enters and then contracts as it cools, creating a strong vacuum. Without a PRV, this pressure difference can make the door difficult to reopen—or worse, damage the door and gasket.

  • A properly installed PRV allows air to balance naturally, ensuring the freezer operates smoothly without forcing equipment to work harder.

  • Sudden pressure imbalances can compromise the seal of your freezer, risking temperature fluctuations that put your stored product at risk.

  • Pressure build-up can create dangerous conditions for staff trying to open heavy freezer doors. Relief vents provide a safer, smoother operation every time.

Below are some options on vents, please contact Gary Sangha at 778-668-4121 or email gary@sanghainsulateddoors.com to have load calculations done to see which vent fits best.

Hinges
Handles
Latches
Relief Vents
Door Closers
Other Parts

Door Closers

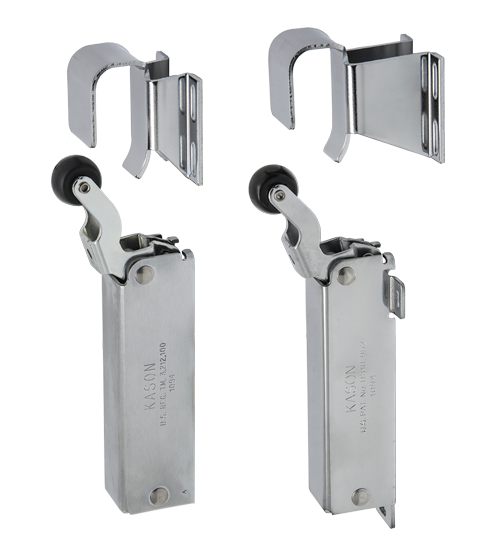

KASON 1094 HYDRAULIC DOOR CLOSERS

Description

The Kason 1094 Series Hydraulic Door Closer has a Gas-Loaded Hydraulic Cylinder that Guarantees Controlled Closure. Solid Steel Enclosed Housing and Bend-Resistant Hook Assure Long Wear in Heavy use, and the Extra-Wide Hook Ensures Roller Pick-up and Overcomes Alignment Problems. The 1094 is a Perfect Complement for Kason Walk-in Hinges and Latches where Self-Closing Doors with Controlled Closure are Needed

  • Steel housing and mounting plate. Housing and hook also available in stainless steel

  • Bright chrome. Available in powder coat and stainless steel.

  • Drilled for No. 10 (5.0 mm) screws (included)

  • $145.50 / each - closer and hook included

Hinges
Handles
Latches
Relief Vents

Below you will find many other Closer options - to find out what suits your needs the best please contact us.

KASON 1095 SPRING ACTION DOOR CLOSER

Description

Operates by direct force adding to natural swing momentum of closing door

  • Designed to overcome slowing action of gaskets and air pressure

  • Provides fast, full closure for heavy walk-in doors

  • Easy installation; simply snaps onto concealed mounting plate

  • Simple spring mechanism gives long, trouble-free life

  • Solid steel housing and bend-resistant hook assure long wear in heavy use

  • Rubber roller ensures quiet operation

  • Ideal complement for Kason Walk-in door hardware to provide self-closing doors

  • Steel housing and mounting plate. Housing and hook also available in stainless steel.

  • Bright chrome. Available in powder coat and stainless steel.

  • Drilled for No. 10 (5.0 mm) screws (included)

  • $167 / each - closer and hook included

KASON 1094 WIDE HOOK

Description

  • Wider Hook

  • Slotted mounting holes

  • Compensates for door sag on doors without adjustable hinges

  • Ease of alignment during installation and improved vertical adjustment

  • 12 gauge CRS (ASTM A1008) chrome plated and or 12 gauge 316 series stainless steel, satin finish

  • $54 / each - chrome plated

    $102.70 / each - stainless steel

Door Closers
Other Parts

Other Parts

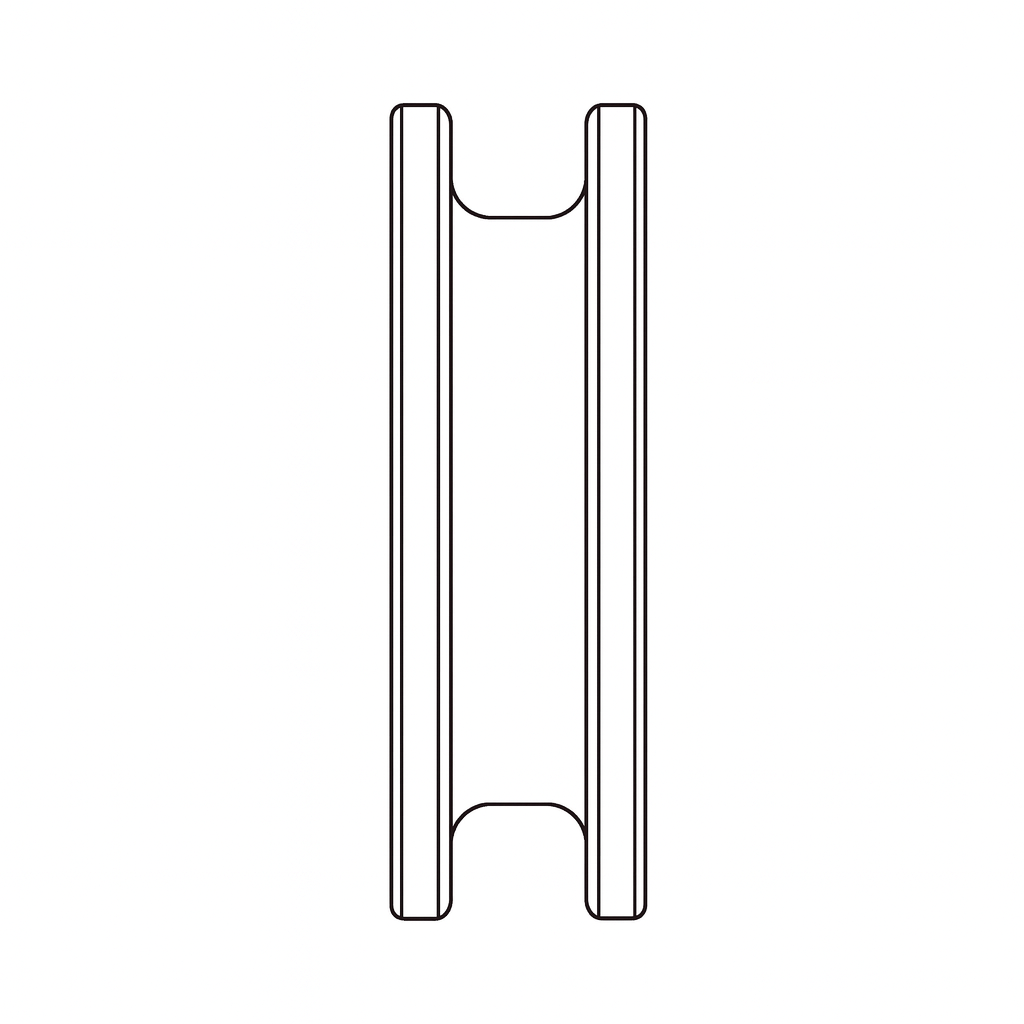

SANGHA/ZERO-LOC SLIDING DOOR WHEEL

3" Roller | 1 Sizes to Fit all

Note: Replacement parts are available strictly for service and repair purposes. Wheels will not be sold for the fabrication of new doors.

  • Sangha’s in-house designed U-groove sliding door wheel is engineered for reliable use on all Zero-Loc and Sangha doors. This component reflects our commitment to long-lasting performance and precision fit.

  • $54.95/ each (sold with bearing and spacers)

Hinges
Handles
Latches

  • Sangha’s in-house designed sliding door floor guide is engineered for reliable use on all Zero-Loc and Sangha doors. This part can replace the existing stay rollers which are now discounted.

  • $49.95/ each

Relief Vents

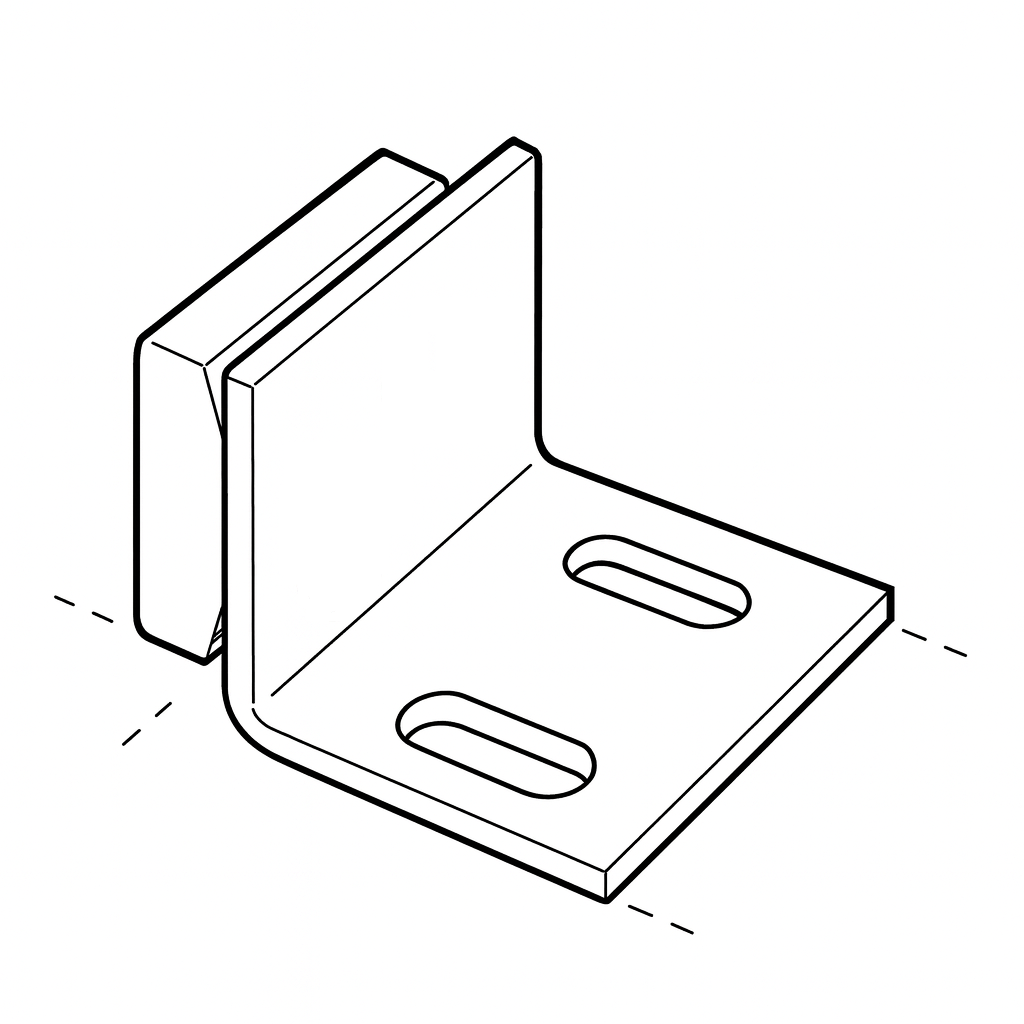

SANGHA/ZERO-LOC FLOOR GUIDE

Description: Sangha’s in-house designed sliding door floor guide is engineered for reliable use on all Zero-Loc and Sangha doors. This part can replace the existing stay rollers which are now discounted.

SANGHA RACEWAY HEATER COVERS - TOP AND BOTTOM

Please note: the 1.5” wide covers are discontinued. Only the 1” wide version is currently available.

  • Our raceway-style heater covers feature a clean, practical design that snaps on easily for quick installation and service. These covers are commonly used across a variety of manufacturers’ doors, making them a versatile replacement option.

  • $2.63/ per foot on top covers - sold in 10'8"

    $3.94/ per foot on bottom covers - sold in 10'8"

Door Closers
Other Parts
